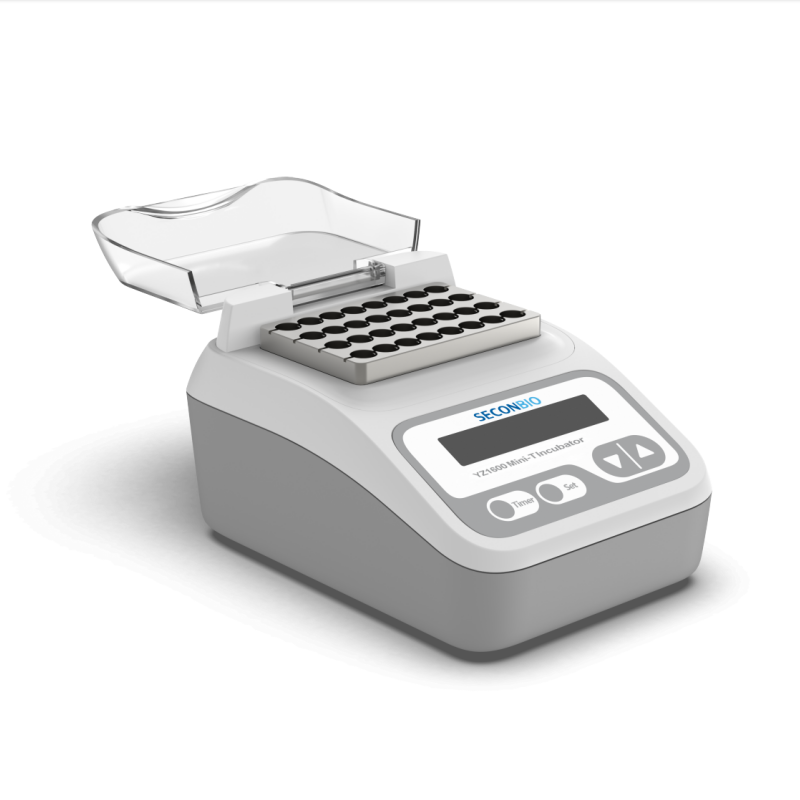

YZ1600 is an open metal heat bath incubator customized for laboratories, designed to meet the stringent requirements of various experiments for constant temperature environments.
Overview
YZ1600 is an open metal heat bath incubator customized for laboratories, designed to meet the stringent requirements of various experiments for constant temperature environments. This incubator innovatively adopts high-performance metal alloy heat conduction technology, with precise and rapid electric heat conversion and sensitive and quick sensor detection response, ensuring uniform and stable temperature in the experimental container.
Application Areas
Research institutions Biotechnology Sample preservation
Coagulation of serum Life sciences Health and epidemic prevention

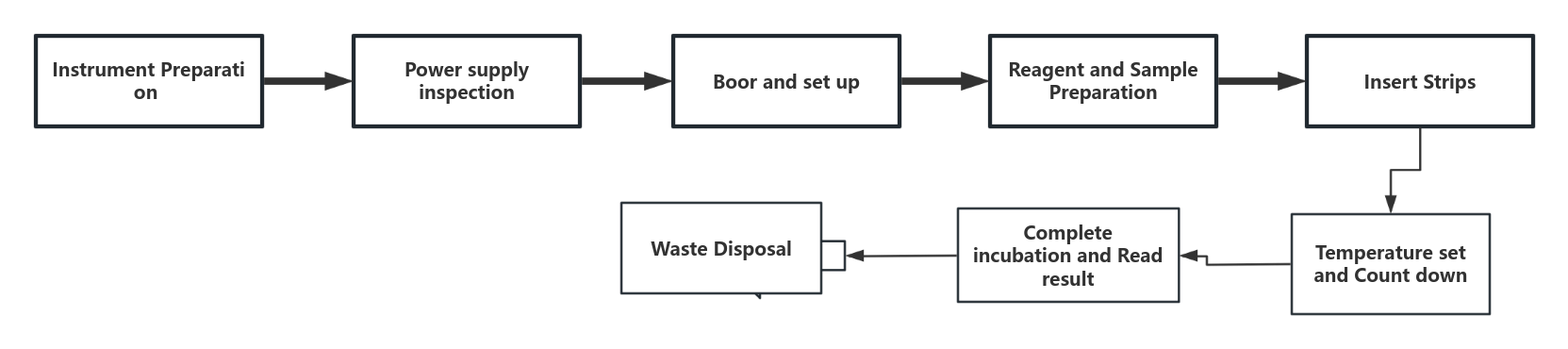

Work flow
Advantages and features
Real-time and accurate temperature measurement technology.l
Flexible countdown configuration and intuitive display.
Intelligent early warning system.
Personalized temperature correction function.
Safe and stable power supply design.
Intuitive operation interface.
Modular design facilitates maintenance and upgrades.
Compatible with a variety of container specifications.
Brochure and Manual Download
Brochure
User Manual
Other instrument recommendations
YZ3000——Intelligent Fluorescence Analyzer
YZ3500——Luminometer
YZ5600——Somatic Cell Analyzer
YZ5800——Milk Analyzer
YZ8000——FLF Strip Reader
Performance Parameters
Instrument dimensions | 109*151*83mm (width*depth*height) | |
Instrument weight | 735g (including power adapter, excluding packaging) | |
Power adapter specifications | Input: 100-240V~2.0A 50/60Hz Output: DC24.0V 3.0A Plug size: 4.0x1.7mm | |
Instrument power | ≤72w | |
Electromagnetic compatibility | Group I Class B (GB/T18268.1 and GB/T18268.26) | |
Maximum number of incubations | 32 holes (4x8) | |
Incubation well size | Diameter 8.7MM, depth 10.0mm | |
Temperature setting range | 25-65℃ | |
Time setting range | Maximum 9 hours 59 minutes 59 seconds | |
Number of temperature storages | Save up to 10 groups, 1 group 2 segments | |
Temperature control accuracy Multi-channel temperature control | When set to 40℃ | ±0.5℃ |
When set to 65℃ | ±2.0℃ | |
Consistency Timing accuracy | When set to 40℃ | ±0.5℃ |
When set to 65℃ | ±1.0℃ | |
Maximum heating time | The error is less than 1 second when setting 15 minutes | |
Temperature display accuracy | Less than 10 minutes from room temperature to 65℃ | |
Instrument dimensions | 0.1℃ | |
